Whirlpool dryer moisture sensor service
An automatic cycle stops when the load is dry, and it knows that from two metal strips inside the drum front. Softener residue insulates them, so the machine sees dry clothes that are still damp and shuts off early — or reads them as wet and runs for an hour. This is usually cleaning rather than a part, and it is priced that way.
- From $89 diagnostic, credited to the repair
- 59 cities and neighborhoods covered
- OEM parts available on order
- In writing the price, before anything is opened
Before you read on
What this job costs and how it is agreed
A starting figure, not a quote. What moves it is the model, how the unit is built in and which part it needs — settled after the on-site diagnostic.
Starts at
from $109
After a diagnostic from $89, which comes off the bill when you go ahead.
or call (305) 363-7702
Diagnostic
From $89, credited to the repair
The price
In writing, before anything is opened
Warranty
On the labor we performed
On the visit
How this visit actually goes
The same order every time, so nothing is opened and nothing is charged before you have seen the figure and said yes.
-
01
Test the sensor
Bridged and open, watching what the control does. The machine's response tells you whether the strips or the board is reading wrong.
-
02
Clean the strips properly
Fine abrasive and alcohol. Softener film is invisible and it is the whole problem in most of these.
-
03
Check the harness behind the drum front
It flexes and chafes. A broken wire reads exactly like a failed sensor.
-
04
Rule out the vent
A restricted duct produces long automatic cycles with a perfectly good sensor, so the two are separated before anything is replaced.
-
05
Run an automatic cycle to completion
With a real load, and the clothes checked at the end rather than the display.
Applies to
The Whirlpool units we carry this work out on
-
Vented electric · vented gas · compact heat pump · HybridCare · laundry tower Whirlpool dryer repair in Miami
Whirlpool publishes 114 pages on the dryer with 55 of them code pages, another 47 on the compact heat pump machine, 35 on the HybridCare ventless dryer, and 92 more of general dryer material — and that is before the laundry tower and the all-in-one branches, which have their own. The published code set runs wide: E1, E2, E3, F01 and F02, the F1 and F2 families, F20 through F31, F70 through F78, FCE1, Loc, PF, and one that no other appliance has — AF, which Whirlpool documents as Check Vent. That single code is the most useful thing this make publishes, because in South Florida a restricted vent is the leading cause of a dryer that has stopped drying and the leading fire risk in the room.
- Vented electric and gas, plus ventless heat pump and HybridCare condensing machines
- 55 published code pages on the vented dryer alone, including AF or Check Vent
- A ventless machine has no duct to blame — the condenser and its drain replace it
In more detail
About Whirlpool dryer moisture sensor service
Two metal strips, and what softener does to them

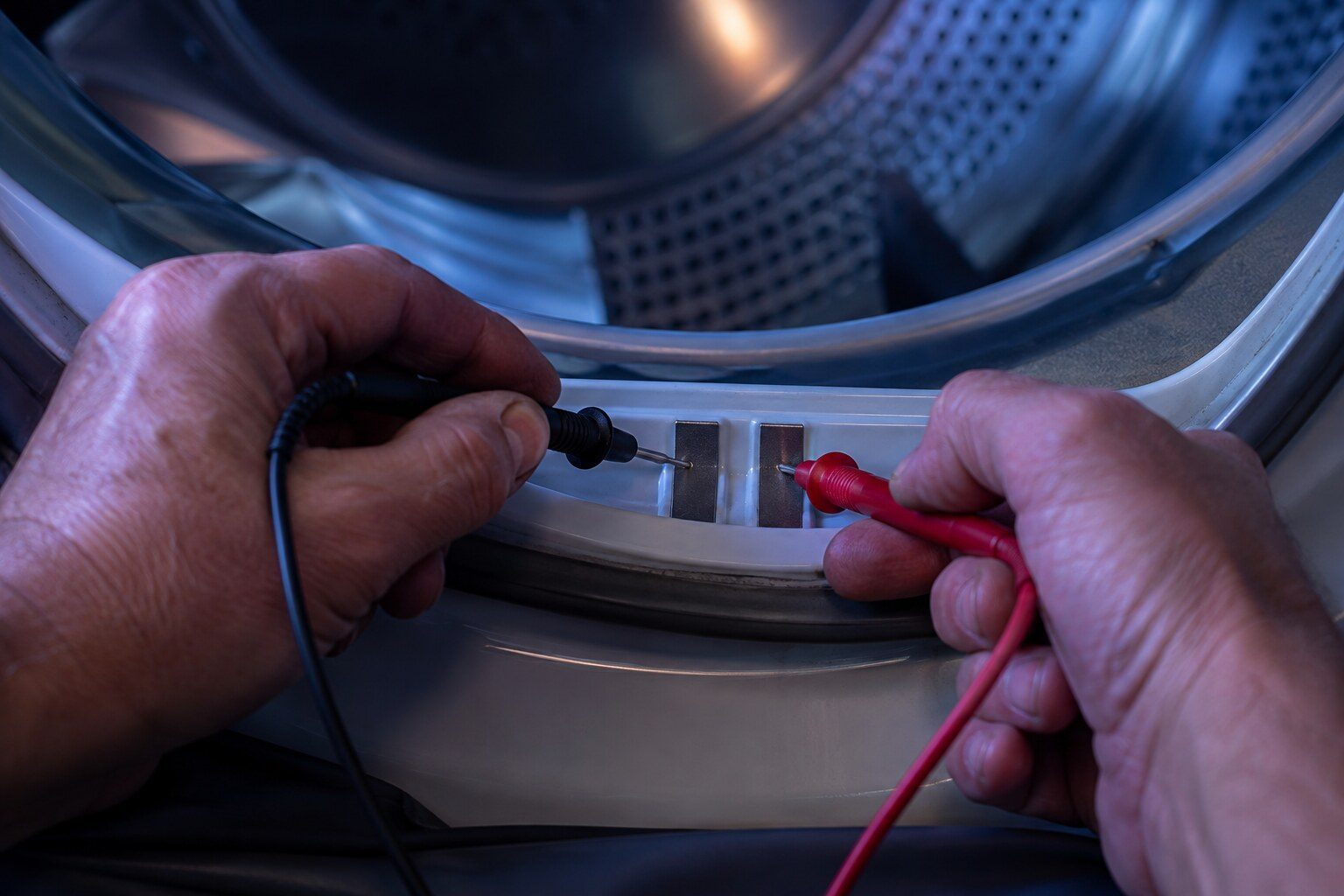

An automatic cycle decides the load is dry by measuring across two metal bars inside the drum opening. Fabric softener and dryer sheets leave a film on them, and a filmed sensor reads damp clothes as dry and stops early — or, when the drum itself is coated, reads dry clothes as damp and runs for an hour past the end. Both complaints arrive at this page and both usually end with cleaning rather than a part. Verification is a wet load run through with a meter on the sensor, not a guess at whether it feels better afterwards.
This article is based on:
- Official manufacturer documentation
- Internal repair procedures
- Technician repair history
- Company quality standards
Before you book
Questions about Whirlpool dryer moisture sensor service
Timed dry works fine. Can I just use that?
You can, and plenty of people do. It costs more in power and it is harder on the clothes, because a timed cycle keeps heating after the load is dry. The sensor exists to stop exactly that.
Could it be the vent instead?
It can present identically, so both get checked on the visit. A restricted duct also produces a cycle that never ends, and separating the two before anybody buys a part is the point of the appointment.
